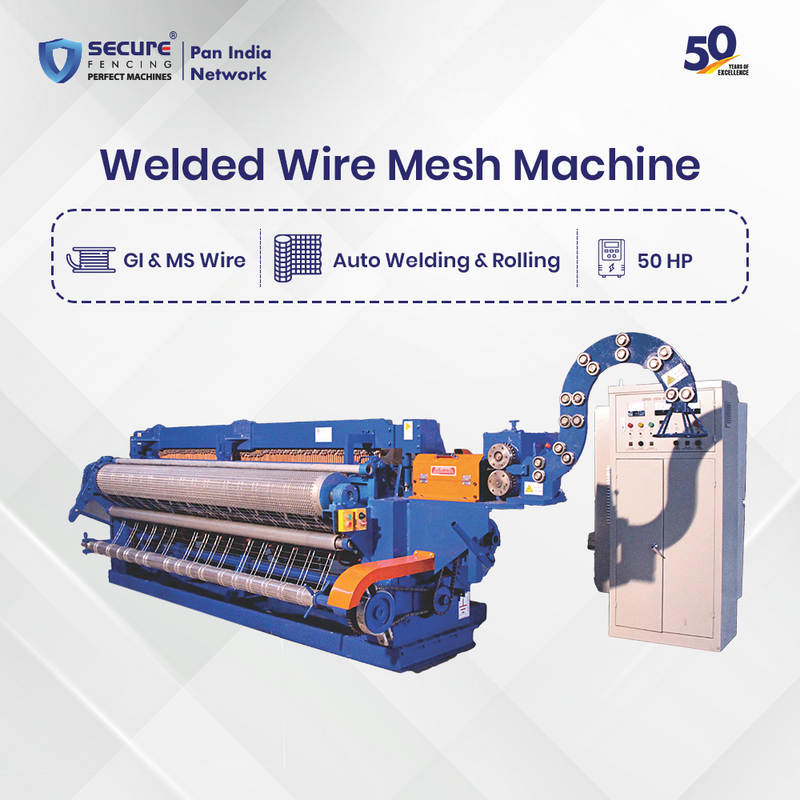

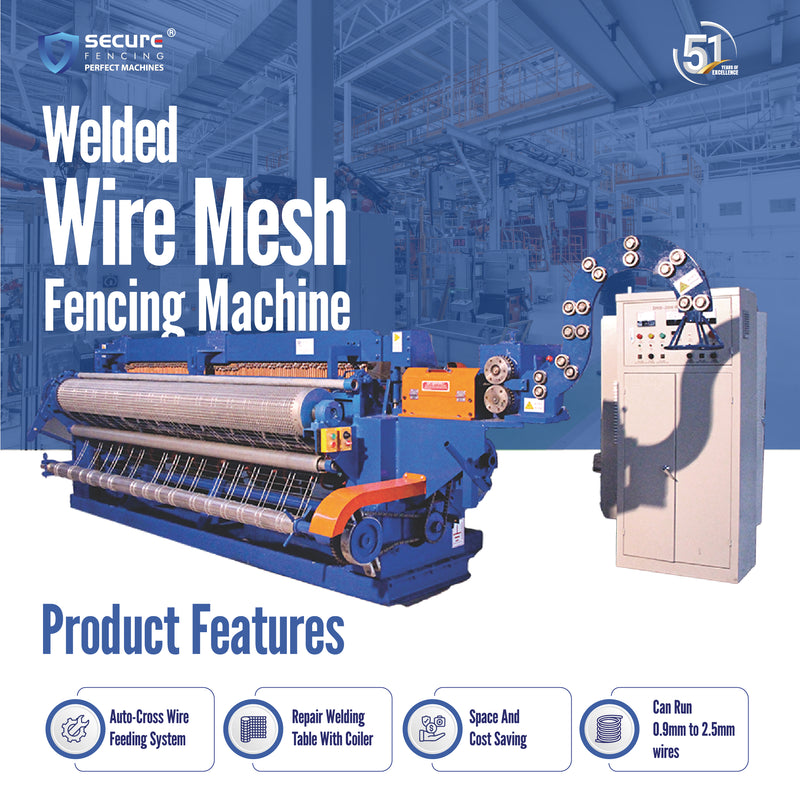

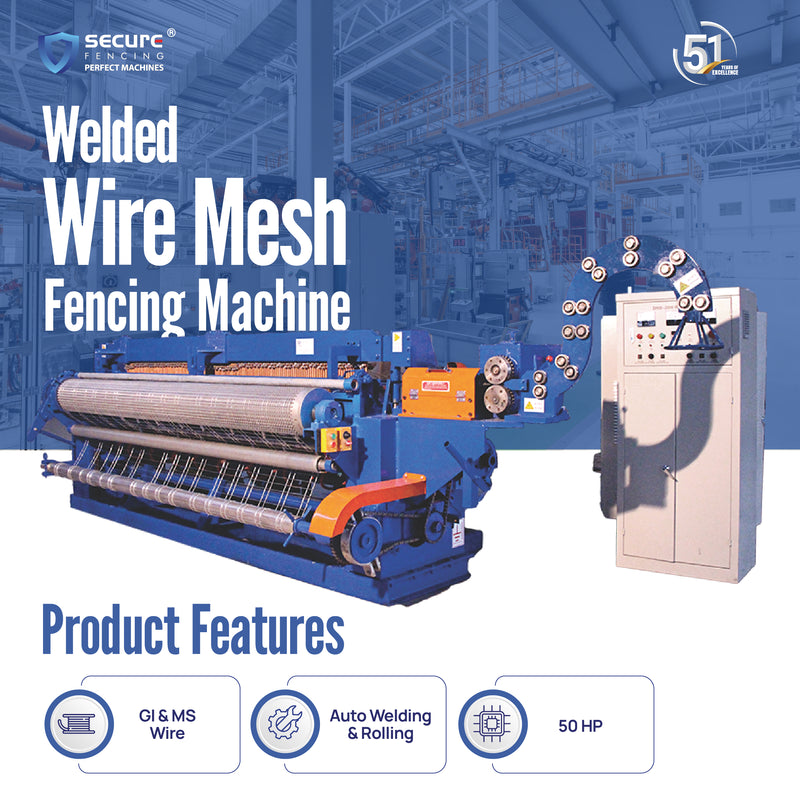

Welded Wire Mesh Machine
📄 Download CatalogueState-of-the-Art Welding Precision for High-Speed Mesh Production
Our Welded Wire Mesh Machine (Up to 2.5mm) delivers high-performance welding with minimal manual intervention. Designed for light to medium duty mesh applications, it’s the preferred choice for industries that demand clean finish, strong joints, and smooth output every time.
🌎 Supports GI and MS material
💰 Seamless welding with automatic wire feeding welding, cutting and rolling
⚙️ Power Consumption: 50 HP
® Sturdy Build Quality: Heavy-duty MS frame for industrial-grade durability
✨ Adjustable multiple mesh sizes (like 25, 50, 75, 100mm)
Benefits
Built for Builders, Powered by Precision
Engineered for wire mesh manufacturers who need accuracy without constant supervision. This top-grade welded wire mesh machine simplifies high-speed production, either for construction, poultry, fencing, or for retail mesh use.
Perfect Welds, Every Time
Equipped with robust transformers and premium contact tips, the machine ensures tight, spark-free joints across materials.
Handles All Light Wire Mesh Requirements
Smoothly processes wires up to 2.5mm in GI and 1.5mm in MS without compromising on mesh shape or weld strength.
Auto Cross Wire Feeding
Ensures faster panel production with higher accuracy, perfect for reducing manual effort and boosting operational efficiency.
Energy-Efficient Welding Technology
Consumes less power despite heavy-duty usage, optimised for long-term performance and ROI.
Space-Efficient Design
At just 6ft/7ft, the machine fits easily into compact workshops while delivering large-scale output.
Technical Specs
Engineered for Long-Term Performance, Built to Deliver Fast
Our welded mesh machine offers an unmatched balance between quality and speed. Backed by OEM engineering, it's the go-to choice for wire mesh manufacturers who want to scale without compromising on quality.
Key Features:
Welding Capacity: Wire up to 2.5mm
Wire Types Supported:
- GI wire
- MS wire
- PVC-coated wire
Power Consumption: 50 - 55HP
Roll Size: 1 to 3Mtr
Included Accessories:
- Complete welding system with transformer
- Mesh straightening and alignment setup
- Spare contact tips
- Tool kit
- Repair Welding Table with Coiler
Applications:
Ideal for welded mesh manufacturers in construction, industrial roofing insulations, warehouse flooring, agriculture land fencing, cooler panels, small cages, and partitions.
FAQs
Q1. How many operators are required to run this machine?
A: The machine is designed for fully automatic operation and can be efficiently managed by a single operator.
Q2. What is the production capacity?
A: It varies based on wire diameter:
- 4mm wire: 150–170 kg/hr
- 3.5mm wire: 130–150 kg/hr
- 3mm wire: 100–120 kg/hr
- 2.5mm wire: 75–85 kg/hr
- 2mm wire: 50–60 kg/hr
Q3. What types of wires are supported?
A: The machine supports GI wire (1.6–4mm), PVC-coated wire (3–5.5mm), and SS 304 grade wire (1.6–4mm).
Q4. What is the mesh size range?
A: Mesh sizes from 30mm to 110mm (1.25" to 4.25") are supported. Custom mesh sizes are also available with specific moulds.
Q5. What is the electrical setup required?
A: The machine includes a 5.5KW transformer. It runs efficiently on industrial three-phase power supply.
Q6. What’s included with the machine?
A: The machine comes with:
- Moulds for 30mm to 100mm mesh
- Remote control
- Industrial tool kit
- Extra relay
- Gloves, wheels, and spare parts
Q7. What is the required space for setup?
A: Minimum space requirement is 20ft x 18ft.
Q8. Is training or installation support provided?
A: Yes, on-site installation, training, and after-sales support are available Pan India.
Q9. What kind of warranty or service support is included?
A: We offer 12-month warranty on electrical and mechanical components. Extended service contracts are also available.
Q10. How do I get a quote or schedule a demo?
A: Click on “Get a Quote” or “Chat Now” to connect via WhatsApp. You can also call us directly for immediate assistance.
